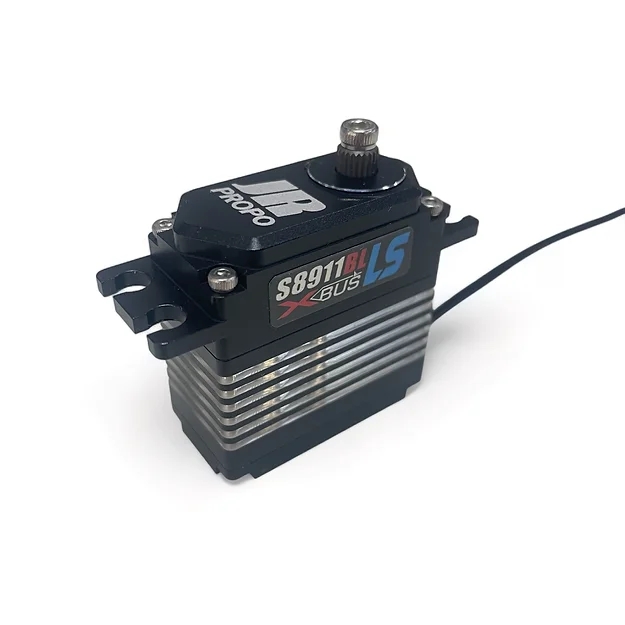

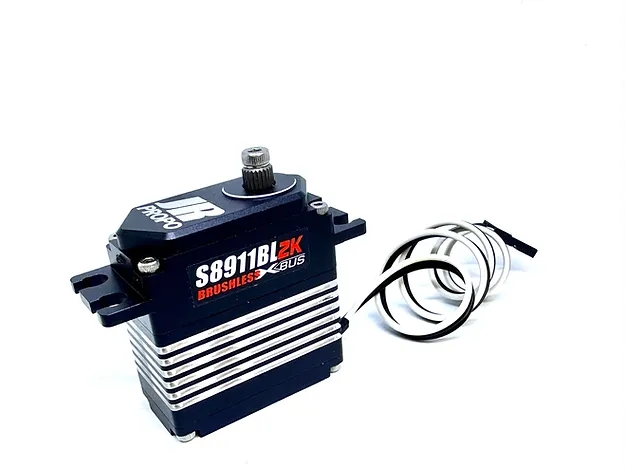

JR Propo S8911BL 2K Big Block Linear Hall Sensor

Article no.: JRS8911BLLS

JR Propo S8911BL 2K Big Block Linear Hall Sensor - special order

NOK3 395,00 Incl. VAT
  • Productinfo
  • Product reviews (0)

This servo is special order item. Contact us at info@rcdepot.no if you want to order.



S8911BL 2K Linear Hall Sensor with big block top case and bigger gears.

Reinforced and redesigned top case and gears to make the servo more durable ever.  New design helps prevent wiggling pins inside the top case which would create gear gap during flight and would be a cause to damage the gears.

Stall Torque: 47.1kgs  (6.6V) / 52.9kgs  (7.4V) / 60.0kgs (8.4V)kg・cm

Speed: 0.15 (6.6V)/0.13 (7.4V)/0.11 (8.4V) Sec/60°

Weight: 86.0 g

Dimensions: 35 x 20 x 41.5 mm

Length of lead harness: 300mm

Operating Voltage: 4.5V - 8.5V

■Programmable Neutral, endpoint, gain etc(Works with PWM XBUS) 120° 150° 180° (Works with PWM XBUS) Synchronize (Works with PWM XBUS)

■Super steel full metal gear (Gear B brass)
■Wide voltage
■BIG upper ball bearing (12x6) bottom (10x6)

■Special design Brushless motor
