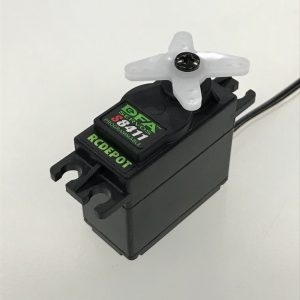

For Aerobatic Airplanes in competition use.
Torque: 14.0 (6.0V) / 17.2 (7.4V) / 19.6 (8.4V) kg･cm
Speed: 0.19 (6.0V) / 0.15 (7.4V) / 0.13 (8.4V) Sec/60°
Dimensions: 34.5 x 19 x 39mm
Voltage Range: 6.0V-8.5V
- High Torque Type
- Slow start function
- Metal Gear
- With Ball Bearing (dual)
Programmable servo. Changes made to servo programming are immediately apparent. Not only can servo direction and travel be adjusted, but it is now possible to fine tune servo gain, dead band and boost to suit your aircraft and desired response. This precise setup allows servo hunting to be eliminated and precise feel maintained.
* Compatible with any radio using PWM control
* XBus compatible allowing *120 to 180 deg travel
* You can adjust Dumping,Hold,Deadband, Boost, ...etc
* Do not use this servo under the different voltage other than specified
If used on a large and Heavy control surface -> Try to adjust Dumping, Holding, Dead band, Boost etc.
