Manual T44

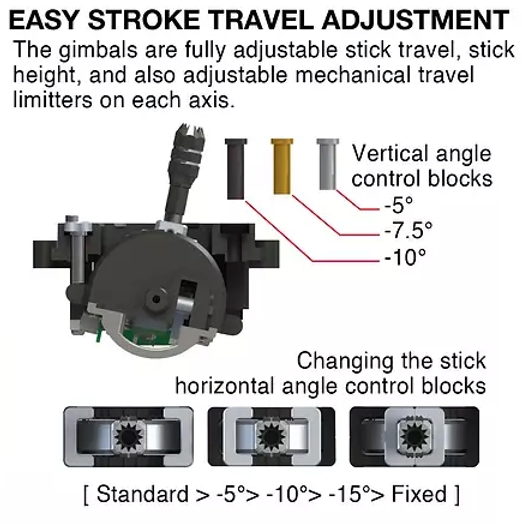

Manual CNC Machined Gimbals
- SYSTEM DMSS/Computer Mixing
- FREQUENCY 2.4GHz FH-SS Frequency hopping Spread spectrum
- Number of channel 11 channel
- Neutral position 1.5ms
- Weight of the transmitter : 960g (Includes battery)
FUNCTION LIST
- DUAL-RATE & EXPONENTIAL
- Limit Adjust
- Sub Trim
- Reverse Switch
- Servo Speed
- Program Mixing: 6 systems
- TIMER: 3 Selections
- MIXING MONITOR
- SERVO MONITOR
SYSTEM LIST
- 30-model internal memory
- Model data copy & erase :copy (Inside TX)(Between TX and TX)(Between TX and SD card)
- Model Type Select: 3types, Heli,Acro, sailplane
- Model Name: 10characters
- Flight Mode Name
- Trim System
- Stick Position Switch
- Trim input Switch
- Stick Alert
- Transmitter Setting
- LCD back light
- LCD contrast
- Idle Alert
- Low battery warning
- Audio Mode
- Software version
- Servo Hold Warning
- Model Link Bind
- Stick Calibration
- Trainer
- Bind and Range Check
- Telemetry System
- Receiver battery / No Link Alarm
- Temperature
- Revolutions Per Minute
- Altimeter
- Climb Indicator
- For Motive Power Battery(Motive Power BatteryAlarm / Nominal Capacity Value / Battery Capacity Alarm)
- All Servos Hold
- Device Select
- Swash type
- Wing Type
- Fail safe
- Throttle Stick Direction
- Stick Mode
ETC
- My list
- Touch select function
- Telemetry indication: Customs sub-information display
- Advanced Digital Trim on each flight mode
- Trainer jack
- SD card slot
- Graphic dispaly with back light LCD
- Charging circuit integrated for Li-FE battery (standard TX pack)
- Stick tension spring adjustment
AIRPLANE:
FUNCTION LIST
- Throttle Curve
- Flap System
- Snap Roll
- Differential
- AILE to RUDD MIX
- AILE to FLAP MIX
- ELEV to FLAP MIX
- RUDD to AILE/ELEV MIX
- Gyro Sensitivity
- Throttle Trim
- Throttle Hold
- Balance
SYSTEM LIST
- Wing Type
- Flaperon
- Delta(Elevon)
- V-tail
- 4 Aileron
- Dual Aileron
- Dual Elevator
- Dual Rudder
- Dual Flap
- Twin Engine
ETC
HELICOPTER:
FUNCTION LIST
- Throttle Curve
- Pitch Curve
- Tail Curve
- Throttle Hold
- Gyro sensitivity
- Governor Setting
- MIX Throttle
- Swash Mixing
- Throttle Trim
- Flight Mode Delay
SYSTEM LIST
- Swash Type
- 1SV Normal
- 2SV 180゜
- 3SV 120゜
- 3SV 90゜
- 3SV 140゜(135゜)
- 4SV 90゜
ETC
GLIDER:
FUNCTION LIST
- Flap rate
- Motor System
- Camber System
- Brake System
- Differential
- Flaperon MIX
- AILE to RUDD MIX
- ELEV to CANB MIX
- RUDD to SPOT MIX
- Balance
SYSTEM LIST
- Wing Type
- V-Tail
- Dual ELEV
- Dual FLAP
- Dual SPOI
- Dual RUDD
ETC
