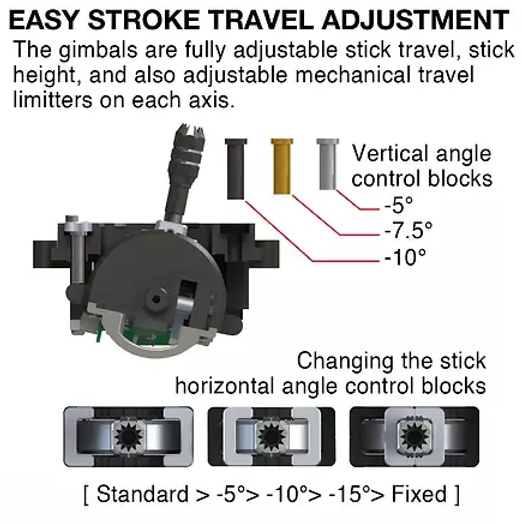

JR Propo T14x4 Chrome with CNC precision gimbals

Article no.: T0076534

JR Propo T14x4 Chrome with CNC precision gimbals

NOK9 495,00 Incl. VAT
  • Productinfo
  • Product reviews (0)

Probably the most awesome gimbals available. Fantastic precision and feeling.

Receiver not included.



■No. of Channels: True 14 Channels

■Servo Control: MAX 56

■Modulation: DMSS (Dual Modulation Spread Spectrum)

■Band: 2.4GHz/FHSS

■Programming Features: Airplane, Sailplane, Helicopter

■Transmitter Battery Type: 6.4V 1400mAh Li-Fe

■Model Memory: 30 + SD memory card slot for unlimited model memory ■Neutral pulse: 1500μS

【 System includes 】  Li-Fe 6.4V 1400mAh 2S transmitter battery pack / NEC-A912 9.0V power adapter / Manual

COMMON

【 FUNCTION LIST 】

・DUAL-RATE & EXPONENTIAL  ・Limit Adjust1(GL Only) ・Sub Trim ・Reverse Switch

・Servo Speed ・Program Mixing: 6 systems ・TIMER: 2 Selections・MIXING MONITOR

・SERVO MONITOR

【 SYSTEM LIST 】

・30-model internal memory ・Model data copy & erase・Model Type Select: 3types

・Model Name: 8 characters ・Flight Mode Name ・Trim System  ・Stick Position Switch

・Trim input Switch ・Stick Alert・Transmitter Setting ・LCD back light ・Servo Hold Warning

・Stick Calibration ・Trainer ・Bind and Range Check ・Telemetry System ・All Servos Hold

・Device Select・Swash type ・Wing Type ・Fail safe ・Throttle Stick Direction ・Stick Mode

【 ETC 】 ・My list ・Touch select function ・Telemetry indication: Customs sub-info. display

・Advanced Digital Trim on each flight mode ・Trainer jack ・SD card slot

・Graphic dispaly with back light LCD ・Charging circuit integrated for Li-FE battery (standard TX pack)・Stick tension spring adjustment



AIRPLANE

【 FUNCTION LIST 】

・Throttle Curve・Flap System・Snap Roll・Differential・AILE to RUDD MIX・AILE to FLAP MIX

・ELEV to FLAP MIX・RUDD to AILE/ELEV MIX ・Gyro Sensitivity・Throttle Trim・Throttle Hold

・Balance

【 SYSTEM LIST 】

・Wing Typev・Flaperon・Delta(Elevon)・V-tail・4 Aileron・Dual Aileron

・Dual Elevator ・Dual Rudder・Dual Flap

【 ETC 】

・Flight Mode

HELICOPTER

【 FUNCTION LIST  】

・Throttle Curve・Pitch Curve・Tail Curve・Throttle Hold・Gyro Sensitivity ・Governor Setting

・MIX Throttle・Swash Mixing・Throttle Trim・Flight Mode Delay

【 SYSTEM LIST 】

・Swash Type・1SV Normal・2SV 180゜ ・3SV 120゜ ・3SV 90゜・3SV 140゜(135゜) ・4SV 90゜

【 ETC 】

・Flight Mode: 6 System

GLIDER

【 FUNCTION LIST 】

 ・Flap rate ・Motor System・Camber System ・Brake System ・Differential ・Flaperon MIX

・AILE to RUDD MIX ・ELEV to CANB MIX ・RUDD to SPOT MIX ・Balance

【 SYSTEM LIST 】

・Wing Type ・V-Tail・Dual ELEV ・Dual FLAP ・Dual SPOI ・Dual RUDD

【 ETC 】

・Flight Mode ・Dual Aileron

T14x4

  • The  JR Propo T14X4 2.4GHz transmitter allows both PWM and XBus servo control. When using XBus, the transmitters 14 channels can operate up to four servos per channel - driving up to 56 servos. By using six JR/DFA RG812BPX high current draw receivers, all 56 servos can be easily connected.
