Scorpion Tribunus III 08-160A ESC SBEC

Article no.: SCTRI3-08-160

Scorpion Tribunus III 08-160A ESC SBEC

NOK3 595,00 Incl. VAT
Wish list
  • Productinfo
  • Product reviews (0)

Supports JR Propo Telemetry protocol. Thus perfect together with the Trinity gyro!

Specifications

Max Continuous Current 160 Amps
Peak Current 200 Amps
Operating Voltage Range 11-35.0 Volts
BEC Output voltage: 5.1V to 12.1V adjustable
Max Continuous BEC Output 15 Amps @ 8.1 V
Peak BEC Output 30 Amps/1s @ 8.1 V
On Resistance 0.33mOhms * 2

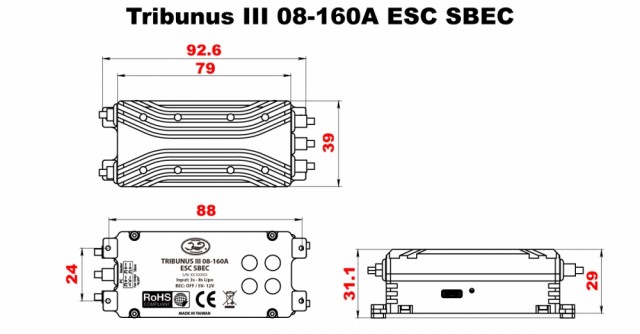

ESC Body Size 39.0 x 79.0 x 29.0 mm (1.53 x 3.11 x 1.14 in)
Mounting Tab Dimensions 24.0 x 88.0mm ( 0.944 x 3.46 in) / M3 Bolt
Weight (without wires) 165g (5.82oz)
Weight (with wires) 205g ( 7.23oz)
Drive frequency 8kHz - 32kHz

Supports real time telemetry with current, voltage, temperature, consumption, output power, BEC V and rpm for the following protocols:

- JR DMSS

- Mikado Vbar

- Futaba SBUS

- Jeti EXBUS

- FR.SKY S.Port

- Spectrum X.bus (with adaptor)

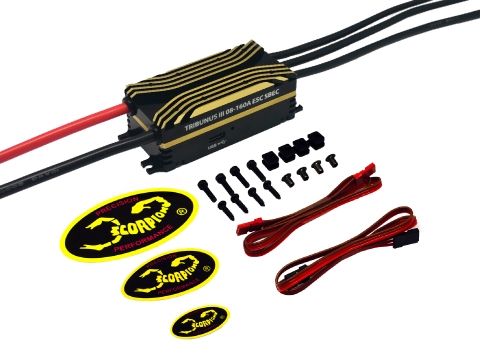

Included in the Box

1 x Tribunus III ESC
2 x BEC Cables
1 x Mounting Hardware Pack
